Checkout Widget

Embed crypto payments in your website or app with a few lines of code

Integrate the Helio Checkout Widget with just a few lines of code to accept USDC, 100+ digital currencies (on Solana, Ethereum, Polygon, Base & Bitcoin), and card payments via a seamless on-ramp flow.

We offer a Vanilla JS & React integration, each with a broad range of config options to customise the checkout for your theme - see here:

🛠️

Our Checkout Widget Builder

ℹ️

IMPORTANT: Phantom requires domain allowlisting for the checkout widget to avoid transaction safety warnings. Email [email protected] and cc [email protected] for allowlisting.

Get started

  • Log into Helio to setup your paylinkId and generate the code snippet on Step 4 of our payment creation flow. Use https://demo.hel.io/ to customise your theme & config
  • Our standard way to embed our checkout is with our JS/HTML embed - simply paste into your code builder as follows

Dynamic Pricing

ℹ️

IMPORTANT: If you want to set the price in your widget programmatically, create a dynamic pay link in the dashboard and pass the amount as a field in your checkout widget configuration code.

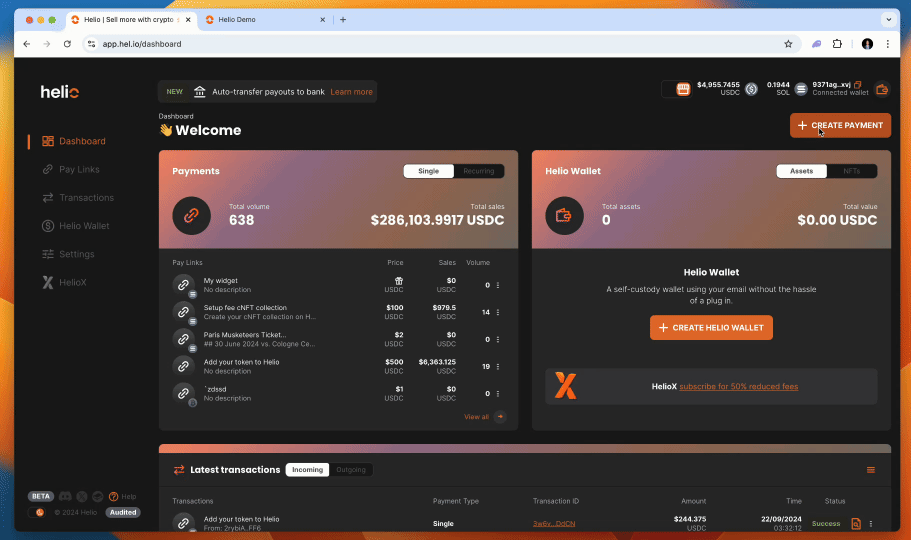

Select "Dynamic" payment to pass the "amount" in your config

Helio Checkout (React)

If you have a React based app, then the easiest way to embed Helio Checkout is with our React component.

Install the dependency:

yarn add @heliofi/checkout-react
# or npm install @heliofi/checkout-react
# or pnpm add @heliofi/checkout-react
ℹ️

  • For Next 14 or React 18, install version ^2.3.1
  • For Next 15 or React 19, install version ^3.0.0

Then in your React components import it in (simply grab the example code snippet for our React component on step 4 when creating your Pay Link).

import {HelioCheckout} from '@heliofi/checkout-react'

const helioConfig = {
    paylinkId: "6571e7cd4a2bee8095ee84da",
    amount: "5.99",
};

function YourCheckoutComponent() {
  return <HelioCheckout config={helioConfig} />;
}

Note: if you are dynamically generating the config object, we recommend wrapping it in useMemo()

Config Options

The configuration options object is the same for our Vanilla JS and React version.

Common config options:

  • One of the following must be set (but not both)
  • paylinkId
    • This is the ID for the Pay Link you would like to embed
      • **example: **paylinkId: "6571e7cd4a2bee1095ee84da"
  • chargeToken
  • network (optional - default is main)
    • values: main or test
    • example: network: "test"
    • This is only required if you generated a Pay Link on our dev/testnet site https://app.dev.hel.io/
    • See note below how our network value works.
  • paymentType (optional - default is paylink)
    • values: paylink or paystream
    • example: paymentType: "paystream"
    • This is only required if you set up a recurring paystream embed.
    • If your Pay Link is recurring, the code snippet on step 4 will already include paymentType: "paystream"
  • platform only if you are embedding from presale.magiceden.io
    • If you are embedding our checkout for a Pay link created fromhttps://app.hel.io you should not set this value.
    • This will automatically be added to the code snippet on step 4 of Pay Link creation if you are on https://presale.magiceden.io
    • values: magic_eden
    • example: platform: magic_eden

Customising the look of the embed:

  • display (optional - default is inline)
    • values: button inline or new-tab
    • example: display: "button" Use this to display a button that opens up a modal with our checkout flow
    • example:display: "new-tab" Use this to display a button that opens up a unique, single use checkout page in a new tab. The "charge pages" are optimal for mobile payment flows, deep-linking, QR codes, embedded pay buttons on simple websites like Wix, or other custom payment flows. Learn more about Charges
  • primaryPaymentMethod (optional - default is crypto)
    • values: crypto or fiat
    • example: primaryPaymentMethod: "fiat"
    • If set tofiat, then 'pay with card' will be the default button option.
  • customTexts (optional)
  • Use this to override some texts/copy within the embed.
  • Current options are as follows:
{
  customTexts: {
    mainButtonTitle: "Purchase via Helio",
    payButtonTitle: "Click to pay",
  }
}
  • theme (optional)

Use this to override theming options within the embed.

  • themeMode ((use this to switch between light or dark appearances):
  • values: light or dark

Example usage:

{
    paylinkId: "6571e7cd4a2bee1095ee84da",
    theme: {
        themeMode: "dark", // or "light"
    }
}
  • dropShadow` (set to true by default, use this to add or remove the drop shadow on the pay button.)
    • values: true or false

Example usage:

{
    paylinkId: "6571e7cd4a2bee1095ee84da",
    theme: {
        dropShadow: false
    }
}
  • primaryColor (optional, required when neutralColor is defined)
    • Use this to customise main colours within the embed
  • neutralColor (optional, required when primaryColor is defined)
    • Use this to customise neutral colours such as border and text colours within the embed

Example usage:

{
    paylinkId: "6571e7cd4a2bee1095ee84da",
    primaryColor: "#E60000",
    neutralColor: "#5A6578"
}

  • backgroundColor (optional, use this to change the background color)
    • values: Provide a hex code (e.g., #FFFFFF for white or #000000 for black)

Example usage:

{
    paylinkId: "6571e7cd4a2bee1095ee84da",
    backgroundColor: "#4bbe7c"
}
  • showPayWithCard (optional - default is true)
    • Use this to remove the 'Pay with card' button from the embed.
    • values: trueor false

Example usage:

{
    paylinkId: "6571e7cd4a2bee1095ee84da",
    showPayWithCard: false
}

Dynamic config options

If you have a dynamic payment (to programatically set the amount a) then you will need to use these options:

  • Log in to Helio and select CREATE PAYMENT -> Dynamic pricing -> paylinkId
  • amount (required for dynamic payments)
    • values: a string value
    • example: amount: "5.99"
    • This will be the amount of the payment currency
  • Use step 2 of the Pay link creation process on https://app.hel.io to set the currencies you will receive in.

Callback config options

Use our callbacks to run Javascript code when certain actions occur.

You can use these to trigger changes in your application.

  • onSuccess
  • onError
  • onPending
  • onCancel
  • onStartPayment

Example:

{
  // ... (your other config options) ...
  onSuccess: event => console.log(event),
  onError: event => console.log(event),
  onPending: event => console.log(event),
  onCancel: () => console.log("Cancelled payment"),
  onStartPayment: () => console.log("Starting payment"),
}

In addition, we recommend using our webhooks to verify transaction on your backend. You can find an end-to-end developer example here including the Checkout Widget and webhooks here:

🛍️

Helio Checkout Embed Widget

Advanced Config Options:

  • debug(optional - default is false)
    • true or false
    • example: debug: true
    • if true then it will output some helpful debug information
  • additionalJSON (optional)
    • values can be any valid JSON data.
    • example: additionalJSON: {customerId: "customer1", product: "T-shirt"}
    • Anything you pass in here will get stored when a customer makes a transaction.
    • You can retrieve this on transactions by listening for our webhooks, which include all relevant values

Our Network Options for Testnet

When you generate a paylink on app.dev.hel.io (for test transactions), then you must set network: "test" in your config.

ℹ️

If you generate on app.hel.io (mainnet) you do not need to set network config options!

(You cannot set network: "test" for a paylink generated on app.hel.io)

The testnets that we use for each blockchain are described below:

  • Solana:
    • main = mainnet
    • test = devnet
  • Ethereum
    • main = mainnet
    • test= Sepolia
  • Polygon
    • main = mainnet
    • test = Mumbai
  • Bitcoin
    • main = mainnet
    • test = testnet3
  • Base
    • main = Mainnet
    • test = Sepolia

Supported Currencies

View our API reference to get a list of all currencies supported.

Embedding the Helio Checkout Widget in Framer (Alpha)

⚠️

Alpha Notice

This feature is currently in alpha and intended for testing and early feedback. It may be unstable, incomplete, or change without notice.

You can add the Helio crypto checkout widget to any Framer project using a simple code snippet.

In Framer, open the Assets panel, go to Code → + Code Component, and paste the snippet below into the editor. Name your component (e.g. HelioCheckout), then drag it onto the canvas like any other element. You can enter your pay link ID and other widget configuration options in the right-hand properties panel, the widget will load automatically.

// Framer metadata: defines how this component behaves in layout
// - Width is fixed (manually set in Framer)
// - Height adapts to content
// - Intrinsic size fallback if unset
// @framerSupportedLayoutWidth fixed
// @framerSupportedLayoutHeight auto
// @framerIntrinsicWidth 400
// @framerIntrinsicHeight 600

import { useEffect, useRef, useState } from "react"
import { addPropertyControls, ControlType } from "framer"

// Props accepted from the Framer UI (sidebar)
interface Props {
    paylinkId: string // User-defined Paylink ID from Helio
}

// Declare a global `window.helioCheckout` interface to avoid TypeScript errors
declare global {
    interface Window {
        helioCheckout: (element: HTMLElement, config: any) => void
    }
}

// Main React component exported to Framer
export default function HelioCheckout({
    paylinkId = "66327978b90031d7202d38cd", // default demo Paylink
}: Props) {
    // Used just to differentiate instances for debugging
    const [id] = useState(() => Math.random())
    console.log({ id })

    // Reference to the div where the Helio widget will mount
    const containerRef = useRef<HTMLDivElement>(null)

    // Local loading/error state
    const [isLoading, setIsLoading] = useState(true)
    const [error, setError] = useState<string | null>(null)

    // Effect hook: inject Helio’s script and initialize the widget
    useEffect(() => {
        // Guard against non-browser environments or missing ref
        if (!containerRef.current || typeof window === "undefined") return

        // Create and configure <script> tag to load Helio's embed script
        const script = document.createElement("script")
        script.type = "module"
        script.crossOrigin = "anonymous"
        script.src = "https://embed.hel.io/assets/index-v1.js"

        // Once script is loaded, initialize the checkout widget
        script.onload = () => {
            if (window.helioCheckout && containerRef.current) {
                window.helioCheckout(containerRef.current, {
                    paylinkId,         // The configured paylink from Framer
                    display: "button", // Display mode (can be "button", "new-tab" or "inline")
                    theme: {
                        themeMode: "dark", // Force dark theme
                    },
                })
                setIsLoading(false) // Done loading
            }
        }

        // Handle error if the script fails to load
        script.onerror = () => {
            setError("Failed to load Helio script")
            setIsLoading(false)
        }

        // Inject the script into the page
        document.head.appendChild(script)

        // Cleanup on component unmount
        return () => {
            if (containerRef.current) {
                containerRef.current.innerHTML = ""
            }
        }
    }, [paylinkId]) // Re-run if paylinkId changes

    // Render error state if script failed
    if (error) {
        return (
            <div className="hel-flex hel-items-center hel-justify-center hel-h-full hel-p-4">
                <div className="hel-text-red-500">{error}</div>
            </div>
        )
    }

    // Render the widget container and loading state
    return (
        <div className="hel-w-full hel-h-full hel-relative">
            {/* Show loading message until widget loads */}
            {isLoading && (
                <div className="hel-absolute hel-inset-0 hel-flex hel-items-center hel-justify-center">
                    <div className="hel-text-gray-500">
                        Loading Helio Checkout...
                    </div>
                </div>
            )}
            {/* Mount Helio widget here */}
            <div
                ref={containerRef}
                id="helioCheckoutContainer"
                className="hel-w-full hel-h-full"
            />
        </div>
    )
}

// Expose Paylink ID to the Framer UI sidebar
addPropertyControls(HelioCheckout, {
    paylinkId: {
        type: ControlType.String,
        title: "Paylink ID",
        defaultValue: "66327978b90031d7202d38cd", // Default/fallback Paylink
    },
})

Updated 10 days ago
